- Commercially deployable NVIDIA® Jetson AGX Orin™ and AGX Orin™ Industrial* platforms
- 1x 16-lane MIPI Expansion Connector
- 2x NVMe M.2 Key M Slots, 2x USB 3.2, 2x GbE, 2x 10GbE
- Wide input power range 10-36V DC
- Dimensions: 155mm x 125mm (6.10″ x 4.92″)

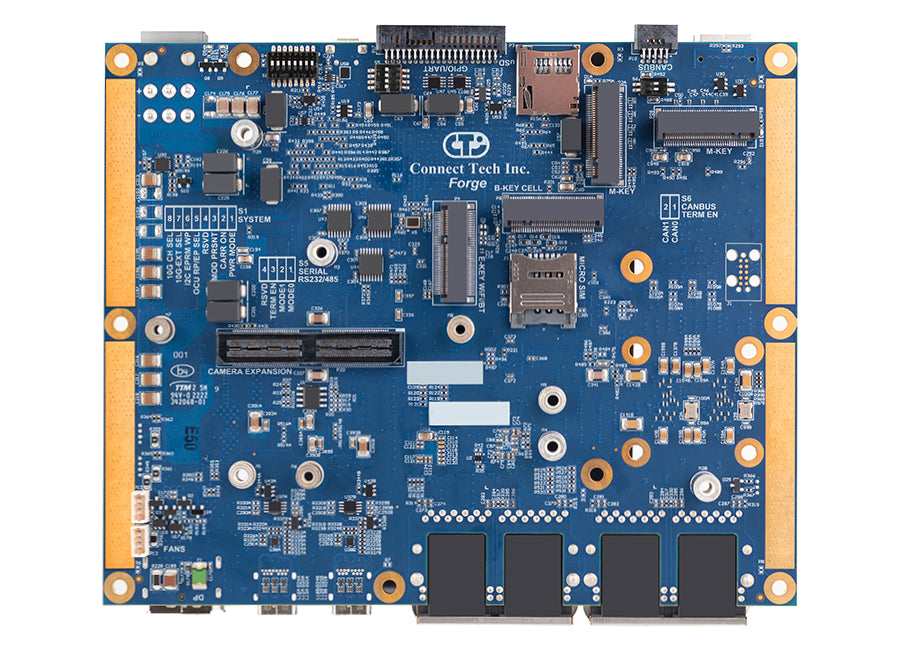

Forge is Connect Tech’s first full-featured Carrier Board for the NVIDIA® Jetson AGX Orin™ module. This carrier board for Jetson AGX Orin™ and AGX Orin™ Industrial* is specifically designed for commercially deployable platforms and has a small footprint of 155mm x 125mm.
Forge provides access to an impressive list of latest generation interfaces on the Jetson AGX Orin™ while adding additional interfaces of 3x USB 3.2, 2x GbE, Display Port and a locking 6-pin Mini-Fit Jr. power input connector.
Rugged camera add-on expansion boards will also be available for use with Forge to interface directly with high-density MIPI CSI interfaces.
Integrations with external storage and WiFi/Bluetooth via Intel 8265 are also available,
*Jetson AGX Orin™ Industrial module is supported on Rev E or later on the AGX201
